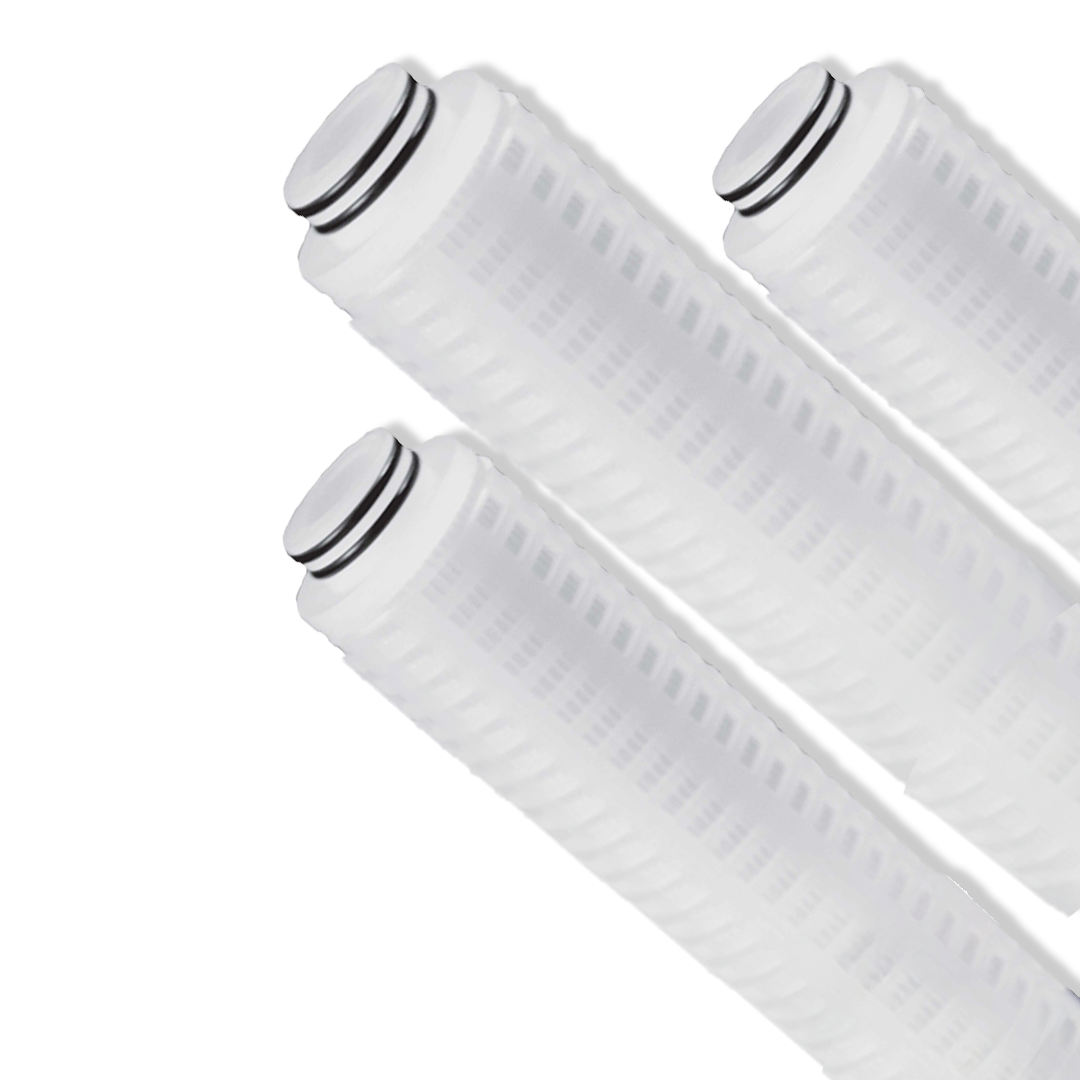

Fluoro Pure Series (FP)
Key Features
- 100% pleated PTFE membrane construction
- Manufactured, flushed, tested, and packaged in an ISO Class 7 cleanroom
- USP Class VI and FDA Title 21 compliant materials
Overview
FLUORO PURE is a pleated PTFE membrane cartridge filter designed for applications requiring superior chemical resistance, elevated-temperature tolerance, and low extractables.
How It Works
Fluid flows outside-to-inside through the pleated PTFE membrane. Particulate is retained on the membrane surface while the fluoropolymer construction provides high chemical resistance.
Applications
- •Air and gas filtration
- •Oil and gas processing
- •Desalination
- •Chemical processing
- •Coolant filtration
- •Pulp and paper
- •Water treatment
- •Power generation
- •Electronics
- •Marine applications
- •Coatings equipment
FAQs
- •
What competitor cartridge does the FLUORO PURE Series replace?
FLUORO PURE is a comparable replacement option for Parker Fluoroflow PTFE pleated cartridge filters. Confirm micron rating, diameter, length, end-cap configuration, seal material, process chemistry, and operating conditions before substitution.
- •
What micron ratings are available?
FLUORO PURE is available in 0.05, 0.1, 0.2, 0.45, 1, and 10 micron ratings.
- •
What diameter options are available?
FLUORO PURE is available in a 2.5-inch OD using diameter code D1, or a 2.7-inch OD with no diameter code in the nomenclature.
- •
What end-cap and seal options are available?
FLUORO PURE is available with E2 DOE with gaskets, E4 222/flat SOE, and E6 226/flat SOE configurations. Teflon gasket code TF is available only with the E2 DOE configuration.
- •
What is the recommended cartridge changeout differential pressure?
Replace the filter at 15 PSID differential pressure, or earlier if process flow or product quality requirements require changeout.
Physical Specifications
Media Specifications
Housing Compatibility
Competitor Cross-Reference
- Parker Fluoroflow
Build Your Model Code
___-___-___-___-___FP-0.2-D1-20-E4-TV
